CU7 gasoline

Motor Hoe CU7 Gasoline

The Motor Hoe CU7 Gasoline is a highly professional machine designed by Casorzo Macchine Agricole s.r.l. to deliver maximum performance

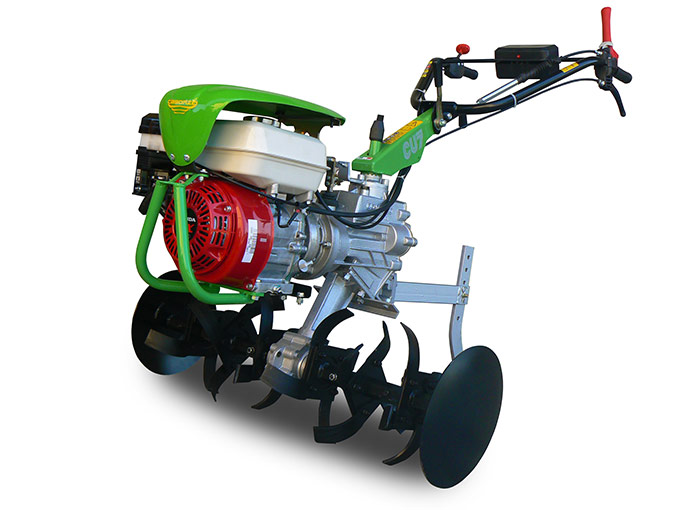

Motor Hoe Cu7 Gasoline HondaThe gearbox has 4 speeds, 3 forward and 1 reverse, operated by a comfortable lever situated at the height of the handlebars.

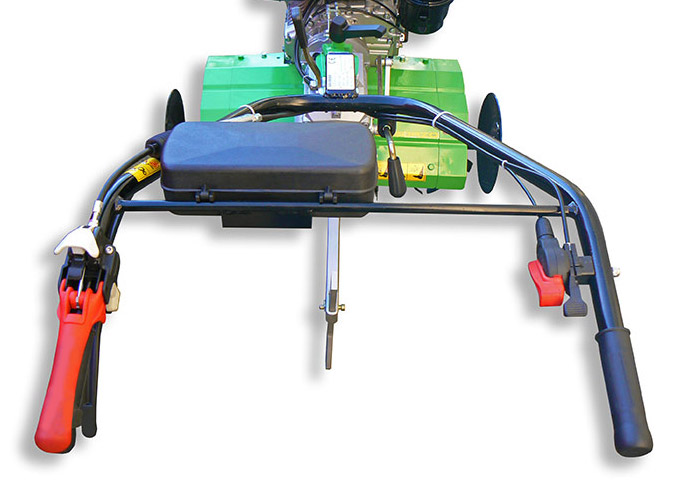

Motor Hoe Cu7 Gasoline commands StegoleAccessories available for Motor Hoe CU7: coulter-ridger plough, single share plough, potato digger plough, transfer wheels, made of full rubber rings with hub, iron wheels, towed cart Motor Hoe Cu7 Gasoline Honda Engine change Equipped with a sturdy mechanical gearbox with high resistance gears in oil bath, it is particularly suitable to work in depth even in very hard, stony soils.

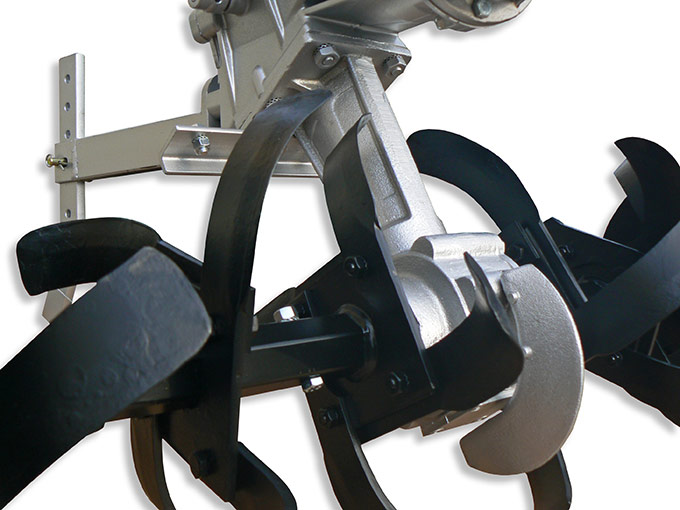

The standard rotary tiller of Motor Hoe CU7 is 90 cm wide and it consists of 6 rows of hardened steel hoes attached by means of bolts and mounted on a 27 mm hexagonal shaft. Motor Hoe Cu7 Motor drive The transmission of the rotary tiller is designed with a pinion and crown in oil bath mounted in a cast iron casing to ensure maximum strength and reliability.
Motor Hoe Cu7 cutterThe ridger plough and the single share plough can be adjusted and connected to the back of the rotavator.

Salva

Available motorizations

Kohler CH 270:
kw5,5 HP7 gasoline
Honda GX 200:
kw4,7 HP6,5 gasoline
Robin Subaru EX17:
kw4,4 HP6 gasoline
Lombardini 15LD/225:
kw3,7 HP5 diesel

Technical data

Starter:
Recoil starter – Electrical starting
Drive:
With oil bath gears
Gearbox:
3 forward gears + 1 reverse gears
Clutch:
Conic active
Standard rotary tiller:
Adjustable with x 6 hoes system and side discs – Working width 900 mm – with hexagonal shaft
Hoes system diameter
34cm
Working width area with side discs:
Adjustable at 75 – 90 – 120 cm
Working depth:
33cm
P.T.O.:
Upper: 711 rpm – Lower: synchronized with the gearbox
Tiller transmission box:
in cast iron
Standard implement
Adjustable support
Handlebar
Height and side adjustment, reversible
Safety devices
Active clutch reverse speed PTO cut-out
Weight
80Kg
Available implements
Single furrow plough, furrower plough, potatoes digger, trailer, transport wheels
