Motor Hoe CU20

The Casorzo Motor Hoe CU20 is a compact sized rototiller, designed mainly for hobby use.

Motor Hoe CU20 Equipped with a robust and compact structure, it allows you to easily prepare the seedbed, making the soil finely crushed, soft, well-ventilated and ready for cultivation.

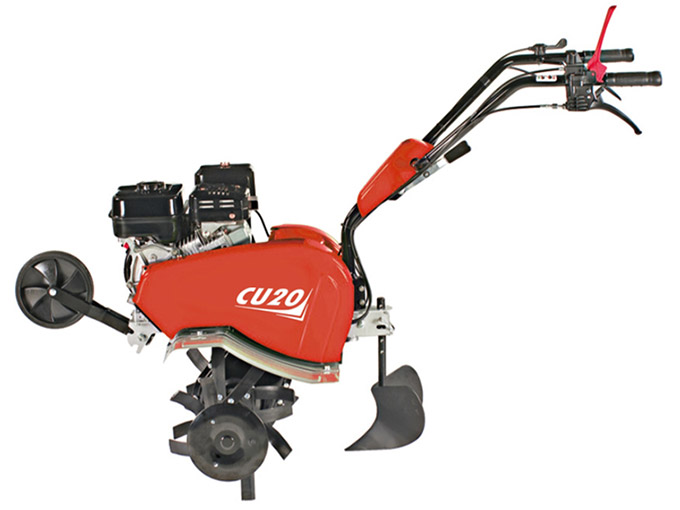

Motor Hoe CU20 with ridger plough The cutter of this rotavator is 80 cm wide and it is equipped with hardened steel hoes with a diameter of 32 cm which allow to work in depth with great stability and safety.

Motor Hoe CU20 Transfer wheel It is also possible to remove two or four of the hoe elements to decrease the width of the milling.

The Motor Hoe CU20 features a forward gear and a reverse and it is equipped with a belt and chain transmission.

Available motorizations

Kohler CH 265:

kw5 HP6,5 gasoline

Technical data

Starter:

Recoil starter – Electrical starting

Gearbox:

1 forward gears + 1 reverse gears

Clutch:

With control lever on handlebar acting on belt stretensioner

Standard rotary tiller:

Adjustable with x 6 hoes system and side discs – Working width 800 mm

Hoes system diameter

32 cm

Working width area with side discs:

Adjustable at 80 – 59 cm

Working width area without side discs:

Adjustable at 30 – 52 – 77 cm

Working depth:

32 cm

Handlebar:

Height and side adjustment, reversible/div>

Max revolutions tiller:

Forward gear 160 rpm – reverse gear 40 rpm

Carter of the tiller:

bolted pressed steel with screwed shells

Standard implement

Front transfer wheel. Two spurs: for hard and soft soils

Safety devices

Active clutch reverse speed PTO cut-out

Weight

61Kg

Available implements

Single furrow plough, furrower plough, potatoes digger, trailer, transport wheels
